When engineers specify flat wire for an application, most of the focus is placed on alloy selection, tolerances, hardness, or tensile strength. However, one detail that can significantly impact performance is often overlooked: edge condition. The edge profile of flat wire plays an important role in how the material performs during manufacturing and in the final application. Whether the wire is being coated, formed, stamped, welded, or run through tooling, choosing the right edge condition can improve consistency, reduce wear, and help optimize production. At United Wire, we work with customers across a wide range of industries to help determine the best edge condition for their specific application requirements.



What Is Edge Condition?

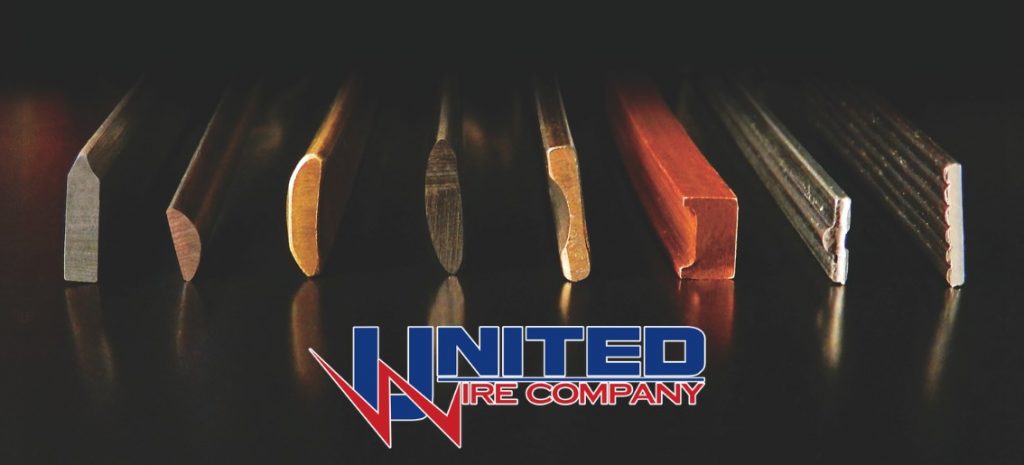

Edge condition refers to the shape and finish of the edges on flat or shaped wire. The two most common edge profiles are a rounded edge and a squared edge; however other shapes such as triangles are possible.  Each offers distinct advantages depending on how the wire will be processed or used.



Round Edge Flat Wire

Round edge flat wire features softened or radiused edges rather than sharp corners. This edge condition is commonly preferred in applications where smooth handling, coating consistency, reduced tooling wear, or flexibility are important. For example, wire used in flexible shafts, cable assemblies, braided hose reinforcement, and push/pull control systems often benefits from rounded edges, which can help reduce friction and minimize wire-to-wire abrasion during operation. Another common application is magnet wire, where a smooth round edge promotes more uniform coating coverage. Sharp corners can create inconsistencies in coating thickness, while rounded edges allow coatings or insulation materials to flow more evenly across the surface of the wire.



Reduced Tool Wear

For applications where flat wire runs through dies, round edges are often preferred because they are gentler on tooling surfaces. Sharp edges can create excessive contact stress and increase wear on equipment over time. A rounded edge helps minimize abrasion and reduces the likelihood of damaging tooling components during production.

This can result in:

  • Longer tool life
  • Reduced maintenance requirements
  • Smoother feeding
  • Improved manufacturing efficiency



Square Edge Flat Wire

Square edge flat wire maintains sharper corners and maximizes the usable surface area of the material. This edge condition is often selected when surface contact is critical to the application.



Increased Surface Area for Welding

In welding applications, square edge wire is frequently preferred because it provides more surface area for contact and bonding.

The additional edge surface can help:

  • Improve weld consistency
  • Increase contact area
  • Support stronger weld joints
  • Improve repeatability in production

For manufacturers focused on reliable weld quality, edge geometry can play an important role in achieving consistent results.



Better Surface Utilization for Stamping

Square edge [flat] wire is also commonly used in stamping applications where maximizing material surface area is important.

Compared to a rounded profile, square edges allow manufacturers to utilize more of the wire’s width during the stamping process. This can be beneficial for:

  • Tight-tolerance stamped components
  • Precision part geometries
  • Material utilization efficiency
  • Consistent part dimensions

In high-volume production environments, even small improvements in usable surface area can contribute to better overall efficiency and reduced material waste.



Precision Flat Wire Solutions from United Wire

At United Wire, we manufacture precision flat and shaped wire for demanding applications across the medical, aerospace, electronics, industrial, and automotive markets.

Our team works closely with customers to help determine the ideal:

  • Edge condition
  • Wire geometry
  • Alloy selection
  • Temper
  • Tolerance requirements

Whether your application requires smooth round edges for coating consistency or square edges for maximum surface utilization, we can help provide a solution tailored to your production needs. To discuss more, contact us at sales@unitedwirecompany.com or call  1-800-840-9481.
